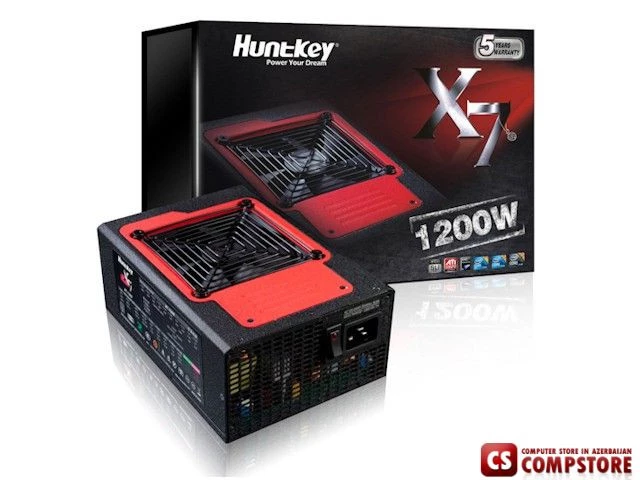

HuntKey X7 1200 (1200 Watt) Power Supply

 Блок питания HuntKey X7 1200 (1200 Watt)
Anbarda: Tükənmişdir
Təyin edilməyib
Mal haqqında

Four unique technologies (Interleaved PFC, Phase-shifted Full-bridge, Synchronous Rectification and DC-DC Module) give X7 1200 higher efficiency, more stability and fluent performance. The super-cool appearance with a powerful heart inside makes no gamer can tear himself away from it. The modular DC output design, with which it's easy to tidy the wires, makes the chassis clean inside.

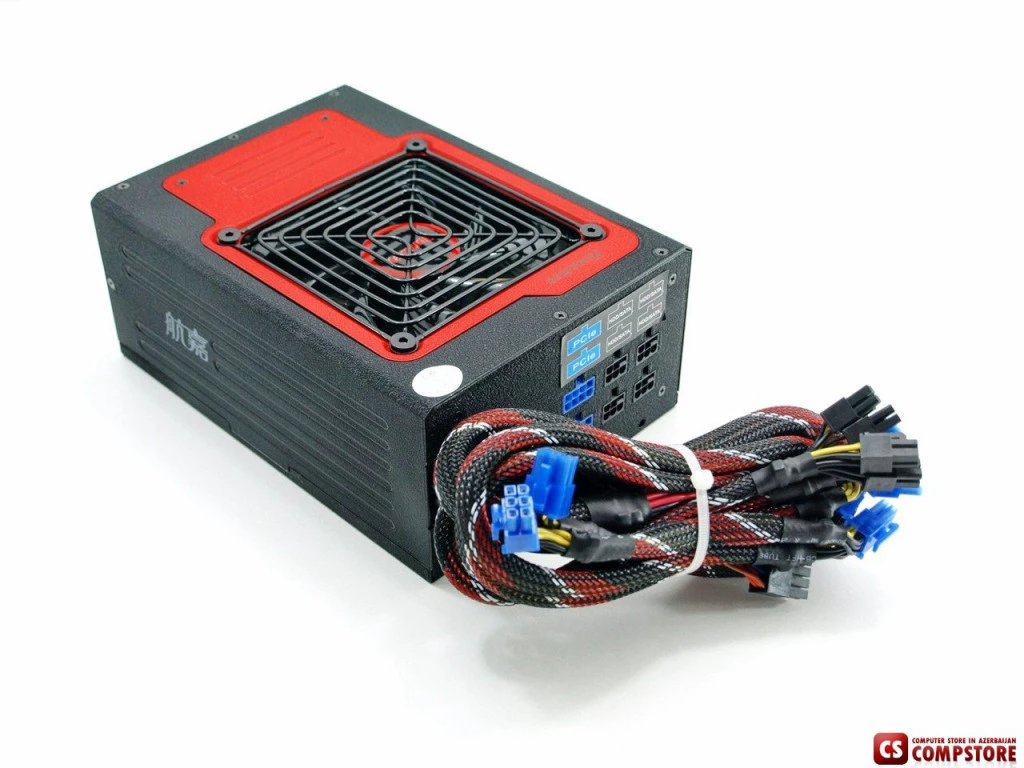

Cable management design
Complies with Intel ATX12V V2.3 & EPS12V V2.92
Certified by 80 PLUS® Gold
Active PFC (PF>0.99)
Extreme silence with intelligent-thermal fan control technology
Supports SLI & Crossfire Multi-GPU VGA cards
Supports Intel & AMD Dual Core CPUs and Multi Core CPUs
Supports PCs, IPCs, work stations and servers
Strict voltage regulation (±3%) provides stable voltage for system
The standby mode consumes less than 1W when +5VSB is less than 0.1A
Six +12V rails provide superior system performance
Advanced phase-shifted full-bridge controller brings high reliability & efficiency
Multiple protection functions: OCP, OVP, OPP & SCP
100% Burn-In tested & 100% Hi-Pot tested
MTBF: 100KHrs
Выходное напряжение
Загрузка
Регулирование
Пульсации и шума
Мин
Макс
Волны
Макс мВ
3,3 V
0.8A
20А

+ / - 5%
50 мВ
+5 V
0.5A
24А

+ / - 5%
50 мВ
+12 V1
0A
20А

+ / - 3%
120mV
+12 V2
0A
20А

+ / - 3%
120mV
+12 V3
0.9A
20А

+ / - 3%
120mV
+12 V4
0.1A
20А

+ / - 3%
120mV
+12 V5
0.0A
20А

+ / - 3%
120mV
+12 V6
0.0A
20А

+ / - 3%
120mV
+5 VSB
0.1A
3.0A
3.5A
+ / - 5%
50 мВ
-12V
0.0A
0.5A

+ / - 10%
120mV
