| ОСНОВНЫЕ ХАРАКТЕРИСТИКИ |
| Модель |

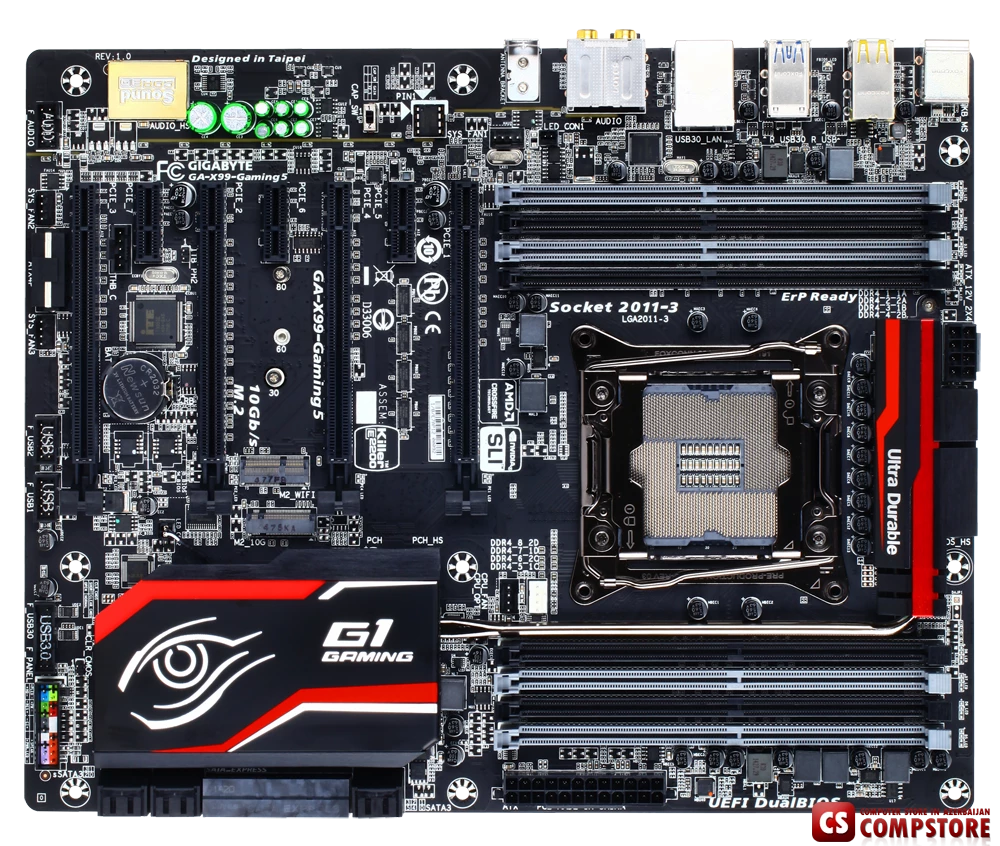

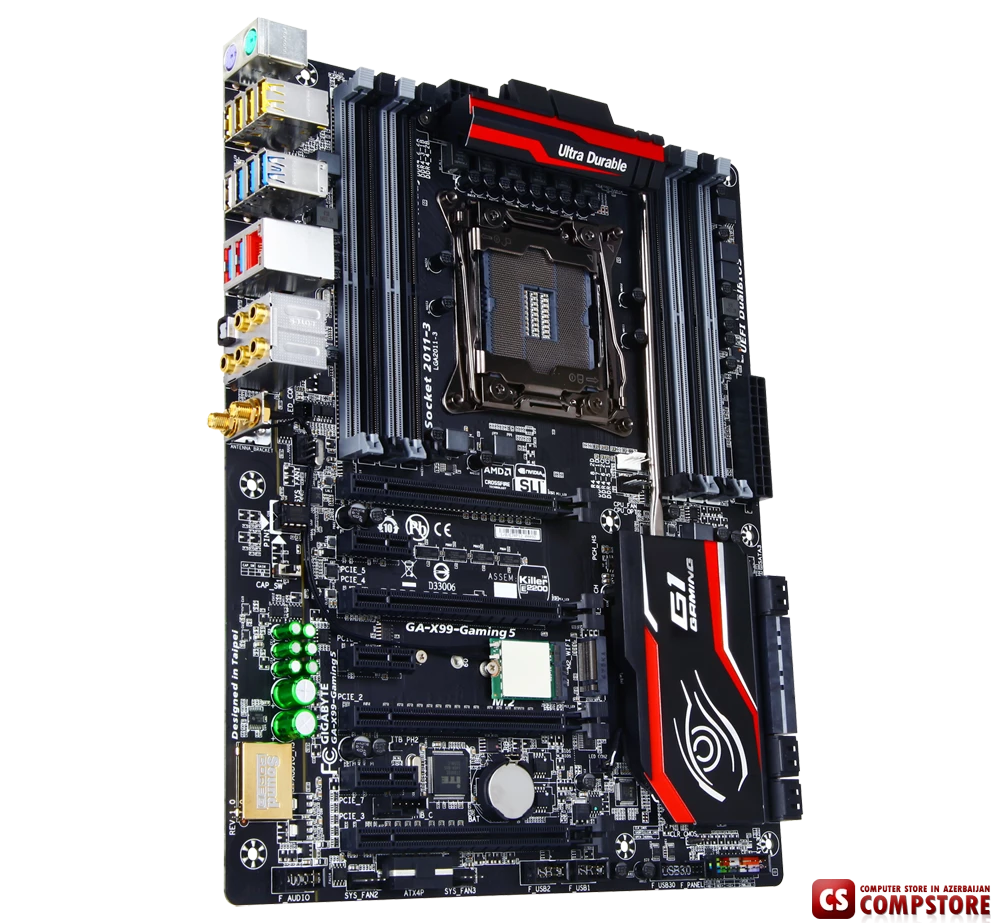

Gigabyte GA-X99-Gaming 5 |
| Процессор |
- Плата совместима с процессорами Intel® Core™ i7 LGA2011-3
- Объем кэш-памяти L3 зависит от модели процессора
|
| Набор микросхем |
- Intel® X99 Express
|
| Подсистема памяти |
- 8 DIMM-разъема с поддержкой ОЗУ DDR4 В объемом до 64 Гбайт
- * Из-за ограничений ОС Windows 32-bit, при установке 4 ГБайт RAM (или более) доступный объем оперативной памяти будет менее 4 ГБайт
- 4 канальная архитектура памяти
- Support for DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
- Совместимость с non-ECC модулями ОЗУ
- Поддержка модулей памяти XMP (Extreme Memory Profile)
|
| Графический интерфейс |
Интегрированное графическое ядро:
- 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- *Версия интерфейса HDMI соответствует спецификации 1.4a.
- 1 DVI-I выход, максимальное разрешение 1920x1200
- Максимальный объем используемой памяти - 1Гб
Intel® DSL4510 chip:
- 2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560x1600.
- *If a monitor is connected to the MDP2 Thunderbolt port , the DVI-I port will become unavailable
- * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express and PCI devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," and Chapter 2, "Peripherals\Intel(R) Thunderbolt" for more information.)
|
| Аудиоподсистема |
- Creative® Sound Core 3D chip
- Support for Sound Blaster Recon3Di
- TI Burr Brown® OPA2134 operational amplifier
- High Definition Audio
- 2/5.1-channel
- Support for S/PDIF Out
|
| СетевойLAN-интерфейс |
- Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit)
|
| Модуль беспроводной связи |
- Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- Bluetooth 4.0, 3.0+HS, 2.1+EDR
- Support for 11ac wireless standard and up to 867 Mbps data rate.
- * Actual data rate may vary depending on environment and equipment.
|
| Разъёмы для плат расширения |
- 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.
- 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4)
* The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
* When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
(All PCI Express x16 slots conform to PCI Express 3.0 standard.)
- 3 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
|
| Масштабируемость видеоподсистемы |
- Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
* The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."
|
| Интерфейсы накопителей |
Chipset:
- 1 x M.2 PCIe connector
(Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support)
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors (SATA3 0~5)
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
(M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
Chipset:
- 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
(An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)
|
| Интерфейс USB |
Chipset:
- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:
- 4 x USB 3.0/2.0 ports on the back panel
|
| Разъемы на системной плате |
- 1 x 24-pin ATX main power connectorŠ
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 1 x I/O shield audio LED power connector
- 1 x heatsink LED power connector
- 1 x M.2 Socket 3 connector
- 1 x SATA Express connector
- 10 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x Thunderbolt add-in card connectorŠ
- 1 x Clear CMOS jumper
- 1 x audio gain control switch
|

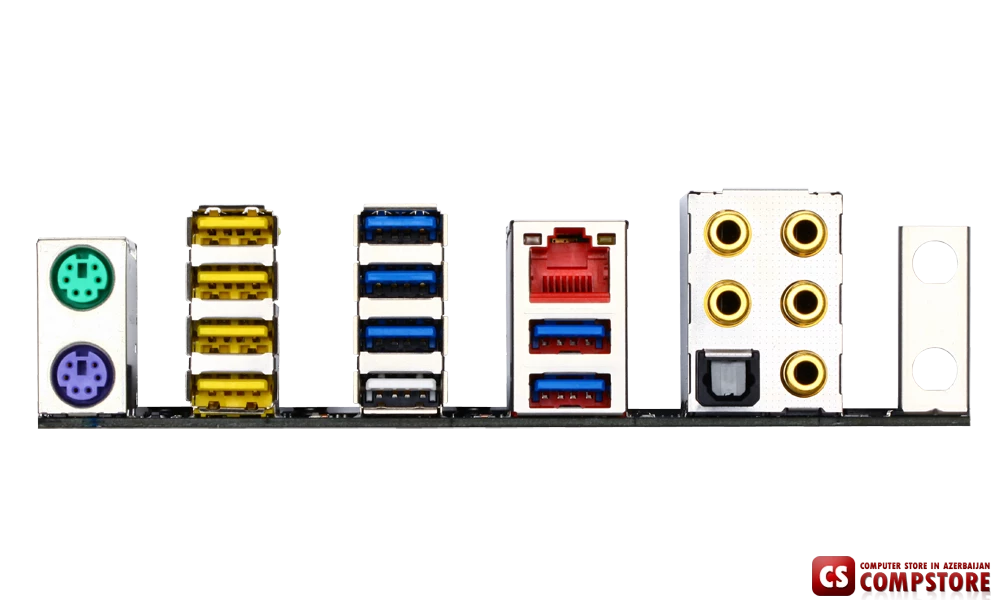

| Разъемы на задней панели |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 6 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x optical S/PDIF Out connector
- 1 x RJ-45 port
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
- 2 x Wi-Fi antenna connector holes
|
Микросхема
I/O-контроллера |
- Контроллер iTE® I/O
|
| Контроль за состоянием системы |
- System voltage detection
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System/Chipset overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- Support for Q-Flash Plus
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Сайт производителя |
http://www.gigabyte.com/products/product-page.aspx?pid=5125#sp |
