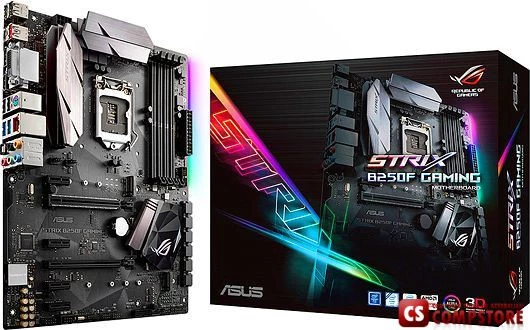

Mainboard ASUS ROG STRIX B250F GAMING (LGA1151 | DDR4 | DVI | DP | HDMI | M.2 | USB 3.1)

Mainboard ASUS ROG STRIX B250F GAMING ana plata modelinin Bakıda ucuz qiymətə satışı ilə tanış ola bilərsiniz. ASUS ROG STRIX B250F GAMING ana plata  modelinin Bakıda topdan satış ucuz qiymətə rəsmi zəmanətlə nəğd və ya köçürmə yolu ilə almaq istəyirsinizsə, onda bizim dükana müraciət edin!
Anbarda: Tükənmişdir
Təyin edilməyib
Mal haqqında

ASUS ROG STRIX B250F GAMING ana plata modeli ən son modellərdən biridir. Əsas özəllikləri aşağıdakılardır.
- FanXpert 4 ədəd dinamin fan kalibləmə, oyun zamanı oyuna uyğun optimizə edilməklə soyutma sistemini işə salır.
- ASUS eksklüziv AURA Sync RGB işıqlandırma sistemi. Sizin kompüterinizə əsl oyun stilini verəcək.
- Dual M.2 sata qoşulma, ön paneldə USB 3.1 və İntel Optane texnologiyası. Qoşulan yaddaş qurğusuna uyğun sürəti ayarlama.
- SafeSlot isə ağır korpuslu qrafik kartları daha düzgün monte etmək üçün körpücük.
- ROG ekskluzivi hesab edilən SupremeFX S1220A 8 kanal HD səs sistemi.
Xüsusiyyətləri
Ümumi məlumat
Tip:
Ana plata
Brend:
Asus
Model:
ASUS ROG STRIX B250F GAMING
Təyinat:
Professional oyunçular üçün kompüter yığılanda istifadə olunan ana plata
Əməliyyat sistemi:
Windows® 10 64-bit
Windows® 8.1 64-bit
Windows® 7 32-bit
Windows® 7 64-bit
Texniki göstəricilər
Prosessorun modeli:
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Operativ yaddaş:
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Video:
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Supports AMD 2-Way CrossFireX Technology
Əlavə:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Səs:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
Qoşulma:
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
6 x SATA 6Gb/s port(s)
Intel® B250 Chipset :
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
Intel® B250 Chipset : *5
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 controller :
2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Type-A + Type-C
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x AAFP connector
1 x RGB Header(s)
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (Support SATA mode only)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x T_Sensor Connector
3 x 3D Mount screw port(s)
Qoşulma
Şəbəkə:
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Əlavə
Qabaritlər:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Zəmanət müddəti:
12 ay
