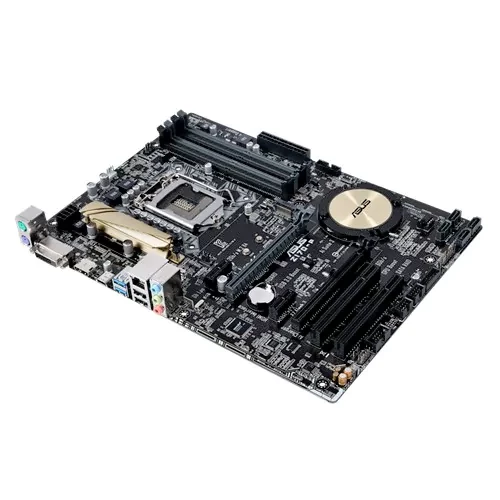

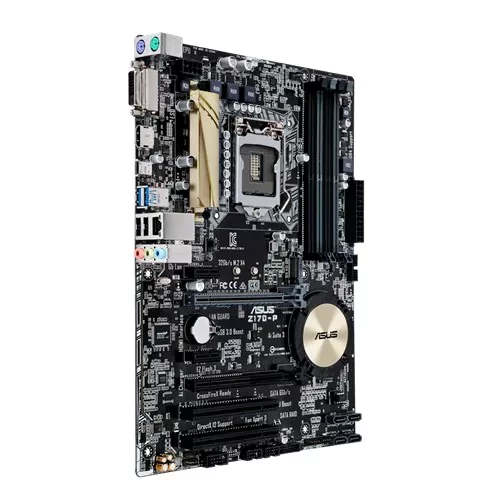

Mainboard Asus Z170-P (90MB0NR0-M0EAY0) 1151 Socket

Mainboard Asus Z170-P (90MB0NR0-M0EAY0)  Ana Plata modelinin Bakıda ucuz qiymətə satışı ilə tanış ola bilərsiniz. Gigabyte Mainboard Asus Z170-P (90MB0NR0-M0EAY0)  Ana Plata modelinin Bakıda topdan satış ucuz qiymətə rəsmi zəmanətlə nəğd və ya köçürmə yolu ilə almaq istəyirsinizsə, onda bizim dükana müraciət edin!
Anbarda: Tükənmişdir
Təyin edilməyib
Mal haqqında

Asus Z170-P (90MB0NR0-M0EAY0)  Ana plata modeli 6-cı nəsil SkyLake prosessorlarını tam dəstəkləyir. Asus firmasının istehsal etdiyi ana platalar dünya səviyyəsində lider pozisiyalardan birini tutmaqdadır. Uzun müddət stabil çalışan kompüter istəyirsinizsə onda məhz Asus brendinin ana platalarından istifadə etməklə kompüter yığdırın. DDR4 tipli operativ yaddaşı 3466 MHz qədər dəstəkləyir.
Xüsusiyyətləri
Ümumi məlumat
Tip:
Ana Plata
Brend:
Asus
Model:
Asus Z170-P (90MB0NR0-M0EAY0)
Təyinat:
Personal kompüterlər yığmaq üçün ana plata
Əməliyyat sistemi:
Windows 7/8/8.1/10
Texniki göstəricilər
Prosessorun modeli:
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Operativ yaddaş:
4 x DIMM, Max. 64GB
DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Video:
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Əlavə:
Supports AMD Quad-GPU CrossFireX™ Technology
Səs:
Realtek® ALC887 8-Channel High Definition Audio CODEC
Qoşulma:
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
2 x PCIe 3.0/2.0 x1
2 x PCI
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology
Intel® Z170 chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
Intel® Z170 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
Intel® Z170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
Qoşulma

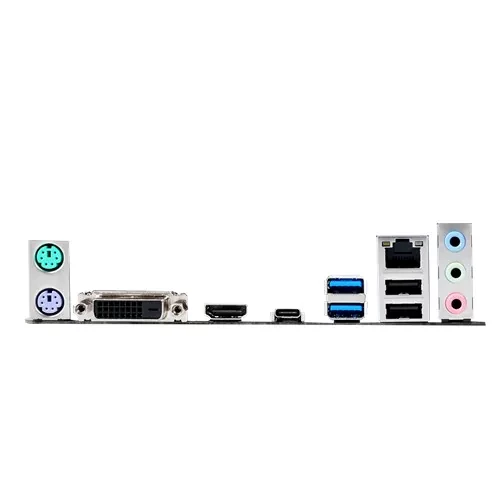

Giriş portları:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
Şəbəkə:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Əlavə
Qabaritlər:
30.5 cm x 22.4 sm
Zəmanət müddəti:
12 ay
