| Модель |

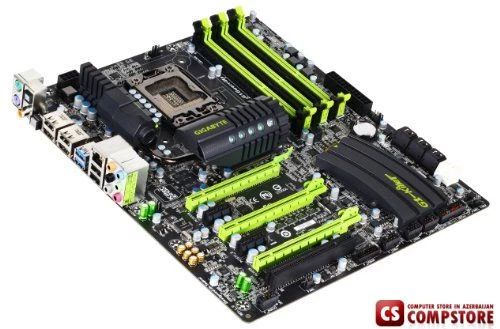

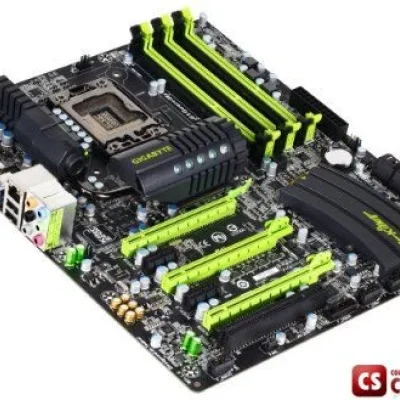

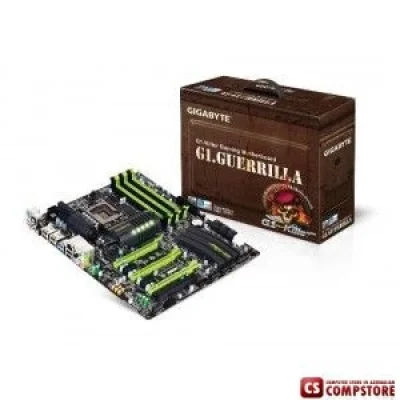

Gigabyte G1.Guerrilla Intel® X58+ ICH10R (For Gaming) |
| Процессор |
- Support for an Intel® Core™ i7 series processor in the LGA1366 package
( Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
|
| Чипсет |
- North Bridge: Intel® X58 Express Chipset
- South Bridge: Intel® ICH10R
|
| Частота системной шины |
1333/1066/800 MHz FSB |
| Память |
- 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
- 3/Dual channel memory architecture
- Support for DDR3 2200/1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| Аудио |
- Realtek ALC889 codec
- Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
| LAN |
1 x Bigfoot Killer E2100 chip (10/100/1000 Mbit) |
| Разъёмы для плат расширения |
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot and the PCIEX8 slot. The PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8 is populated.
(The PCIEX16_1, PCIEX16_2 and PCIEX8 slots conform to PCI Express 2.0 standard.)
- 2 x PCI Express x1 slots
- 1 x PCI slot
|
| Внутренние разъемы ввода/вывода |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 6 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 3 x fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 3 x USB 2.0/1.1 headers
- 1 x USB 3.0/2.0 header
- 1 x clearing CMOS jumper
- 1 x heatsink LED power connector
|
| Задняя панель |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x optical S/PDIF Out connector
- 1 x coaxial S/PDIF Out connector
- 1 x CPU overclocking button
- 4 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 2 x eSATA/USB Combo connectors
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
|
| Контроллер I/O |
iTE IT8728 |
| Контроль за состоянием системы |
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
|
| BIOS |
- 2 x 16 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS ™
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
|
| Другие особенности |
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
- Support for Dynamic Energy Saver™ 2
- Support for Smart 6™
- Support for Auto Green
- Support for eXtreme Hard Drive (X.H.D)
- Support for ON/OFF Charge
- Support for Cloud OC
- Support for Q-Share
|
| Операционная система |
Microsoft® Windows® 7/ Vista/ XP |
| Форм фактор |
ATX |
