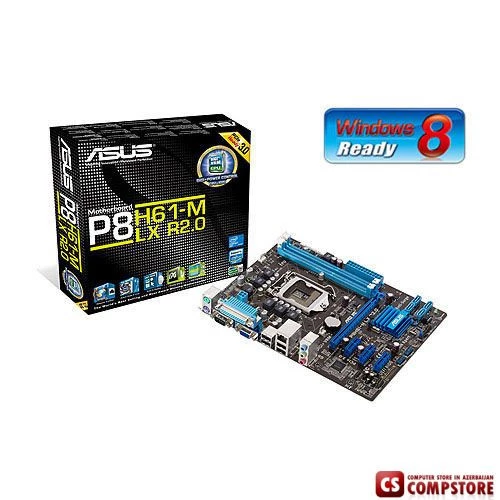

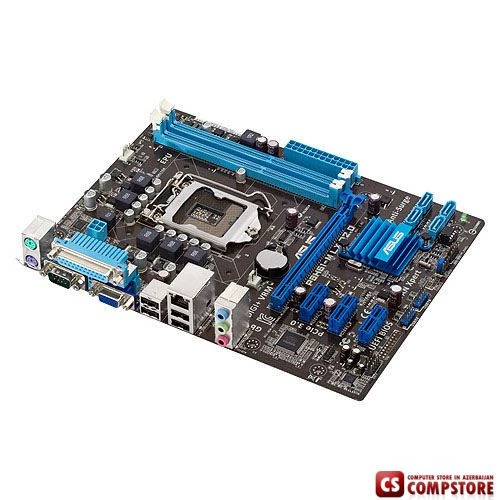

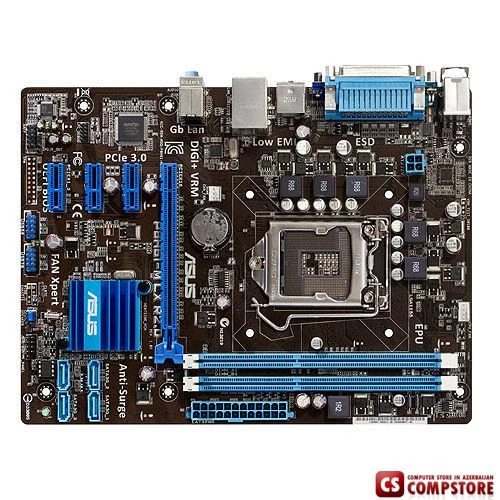

Материнская плата
P8H61-M LX R2.0 с цифровой системой питания (чипсет Intel H61(B3)).
Преимущества:
- Цифровая система питания DIGI+
- Управление сетевым трафиком в реальном времени
- Энергетический процессор
- Удобный и современный интерфейс BIOS
- Единая программная оболочка для доступа к эксклюзивным функциям ASUS – AI Suite II
- Совместимость с Windows 8
| ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ |
| Процессор |
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
*Refer to www.asus.com for CPU support list
Supports Intel® 32 nm CPU
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Чипсет |
Intel® H61(B3) |
| Оперативная память |
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
*Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit WindowsWindows® OS when you want to install 4GB or more memory on the motherboard.
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default. |
| Графика |
Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Supports Intel® Quick Sync Video |
| Слоты расширения |
1 x PCIe 3.0/2.0 x16 ((Blue)) *1
3 x PCIe 2.0 x1 |
| Хранилище данных |
Intel® H61(B3) chipset:
4 x SATA 3Gb/s port(s), (Blue) |
| Локальная сеть |
Realtek®, 1 x Gigabit LAN Controller(s) |
| Звук |
Realtek® ALC887 8-Channel High Definition Audio CODEC |
| Порты USB |
Intel® H61(B3) chipset:
8 x USB 2.0 port(s) (4 at back panel, (Black), 4 at mid-board) |
| Разгонные функции |
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall) |
| Особенности |
ASUS EPU:
- EPU
ASUS Digital Power Design:
- Industry leading Digital 3 + 1 + 1 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features:
- AI Suite II
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2 |

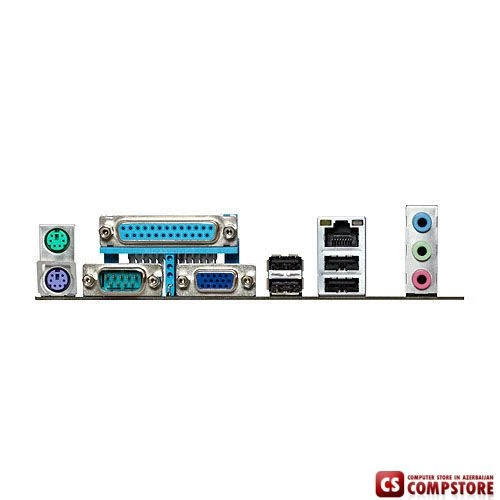

| Разъемы на задней панели |
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s) |
| Разъeмы на плате |
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s) |
| Аксессуары |
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s) |
| BIOS |
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Администрированиe |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Диск с драйверами |
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) |
| Форм-фактор |
uATX Form Factor
9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm ) |
| Примечание |
*1: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output |
