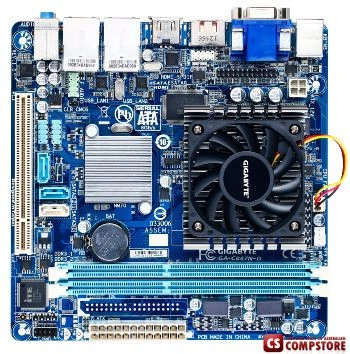

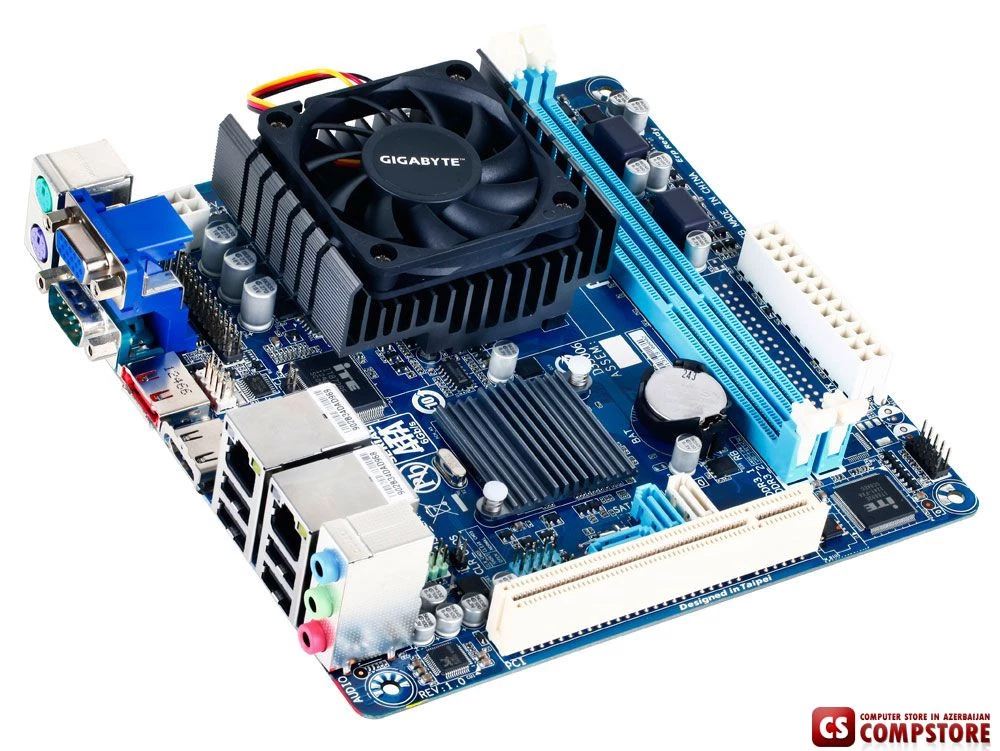

Gigabyte GA-C847N-D NM70 , mini-ITX (170x170) Celeron 847( 1.1 GHz) ,CPU onboard , DDR3*2 1600 up to 32Gb , Integrated VGA 1x16 ,2* GLan, 1*PCI, 2*SATA2,0 1*SATA3,0, 8CH, 8*USB2,0 eSATA, HDMI//RGB /2*COM
| Модель |
Gigabyte GA-C847N-D |
| Процессор |
- Built in with an Intel® Dual-core Celeron® 847 processor (1.1 GHz)
* Do not disassemble the onboard CPU/Chipset and the heatsinks/fan by yourself to avoid damage to these components.
- 2 MB L3 cache
|
| Чипсет |
- Intel® NM70 Chipset
|
| Память |
- 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR3 1333/1066 MHz memory modules
(Please refer "Memory Support List" for more information.) |
| Видео |
Integrated Graphics Processor:
- 1 x D-Sub port
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
|
| LAN |
- 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1)
- 1 x Realtek GbE LAN chip (10/100/1000 Mbit) (LAN2)
|
| Разъёмы для плат расширения |
- 1 x PCI slot
|
| Интерфейсы накопителей |
- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
- 2 x SATA 3Gb/s connectors (SATA2 1/2) supporting up to 2 SATA 3Gb/s devices
- 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
|
| Интерфейс USB |
Чипсет:
- Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, including 1 eSATA/USB Combo, 6 ports available through the internal USB headers)
Fresco FL1009 chip:
- Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
VIA VL800 chip:
- Up to 4 USB 3.0/2.0 ports on the back panel
* Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the VIA USB 3.0 controller driver is installed.
|
| Разъемы на системной плате |
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x SATA 6Gb/s connector
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 2.0/1.1 headers
- 1 x parallel port
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
|
| Разъемы на задней панели |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x serial port
- 1 x HDMI port
- 4 x USB 2.0/1.1 ports
- 1 x eSATA 3Gb/s connector
- 2 x RJ-45 ports
- 3 x audio jacks (Line In/Line Out/Microphone)
|
Микросхема
I/O-контроллера |
iTE I/O |
| Контроль за состоянием системы |
- Регулировка скорости вращения вентиляторов ЦП
*Поддержка функции управления оборотами вентиляторов ЦП зависит от используемых моделей вентиляторов.
- Автоопределение скорости вращения группы вентиляторов ЦП и Системы
- Уведомление о выходе из строя вентилятора ЦП
- Идентификация текущей температуры ЦП/Системы
- Мониторинг значений напряжения питания для компонентов системы
- Идентификация текущей температуры ЦП
|
| Сайт производителья |
http://www.gigabyte.com/products/product-page.aspx?pid=4444#sp |
