| ОСНОВНЫЕ ХАРАКТЕРИСТИКИ |
| Модель |

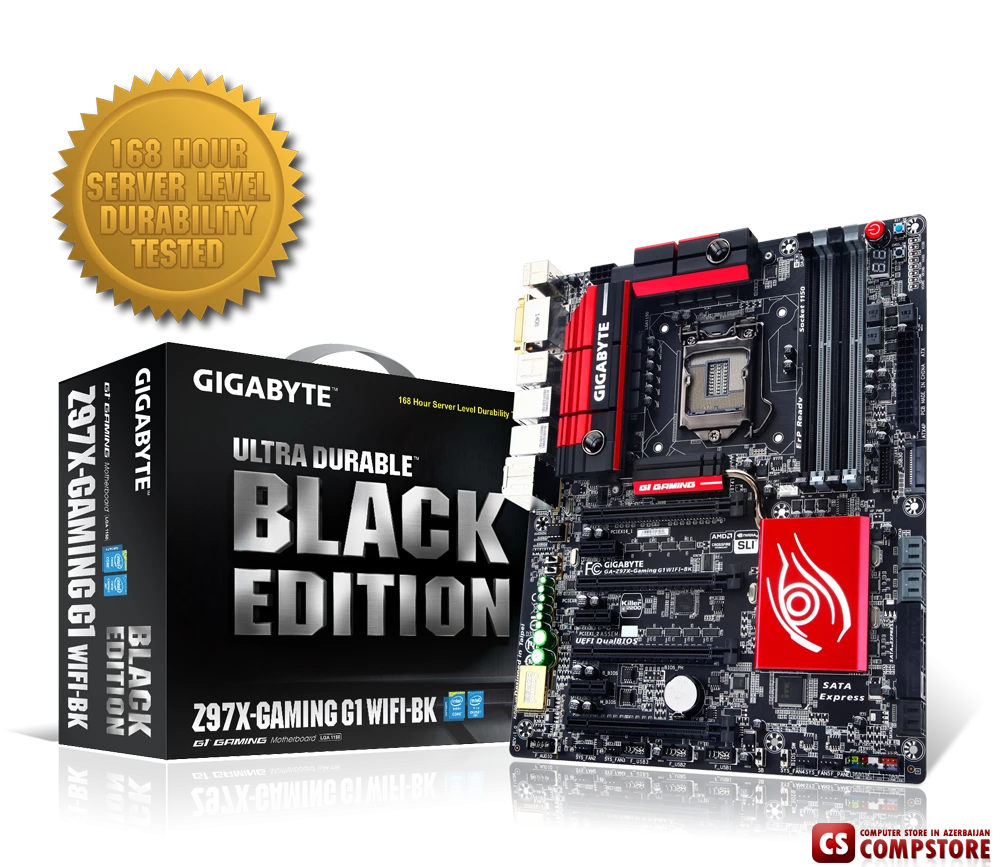

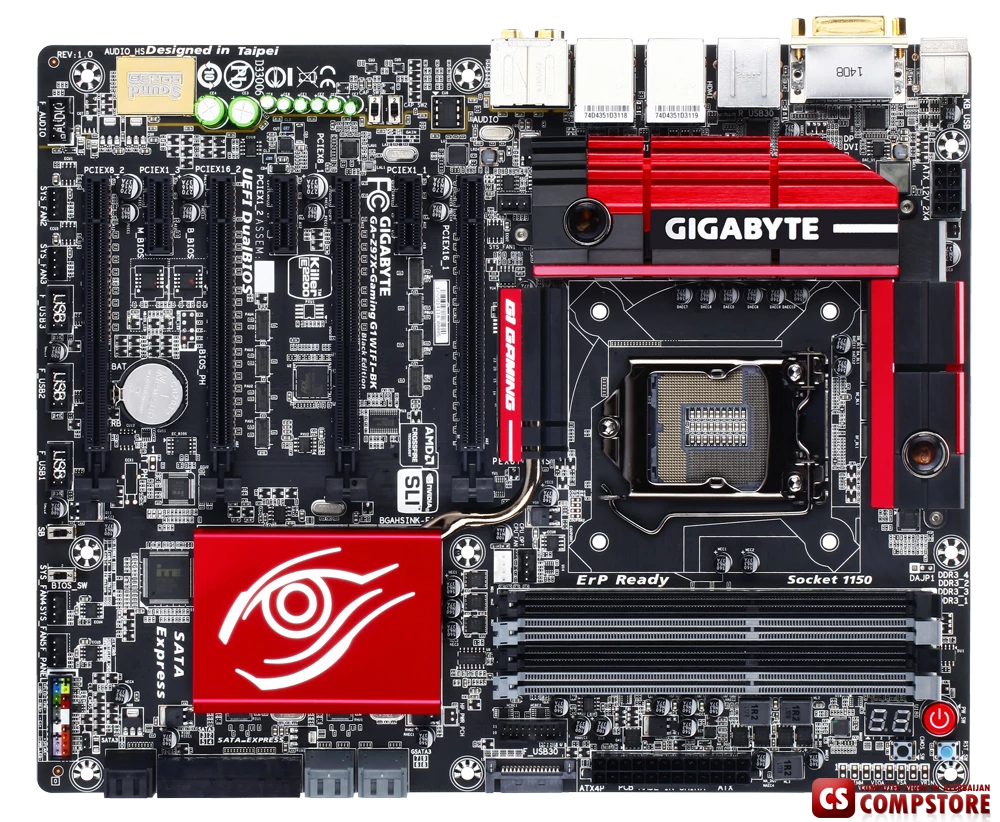

Gigabyte GA-Z97X-Gaming G1 WIFI-BK |
| Процессор |
- Плата совместима с процессорами Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 /Intel® Pentium® / Intel® Celeron® в исполнении LGA1150
- Объем кэш-памяти L3 зависит от модели процессора
|
| Набор микросхем |
- Intel® Z97 Express Chipset
|
| Подсистема памяти |
- 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
- * Из-за ограничений ОС Windows 32-bit, при установке 4 ГБайт RAM (или более) доступный объем оперативной памяти будет менее 4 ГБайт
- Двухканальная архитектура памяти
- Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
- Совместимость с non-ECC модулями ОЗУ
- Поддержка модулей памяти XMP (Extreme Memory Profile)
|
| Графический интерфейс |
Интегрированное графическое ядро:
- Maximum shared memory of 512 MB
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
* Support for HDMI 1.4a version.
- Support for up to 3 displays at the same time
|
| Аудиоподсистема |
- Creative® Sound Core 3D chip
- TI Burr Brown® OPA2134 operational amplifier
- Support for Sound Blaster Recon3Di
- High Definition Audio
- 2/5.1-channel
- Support for S/PDIF Out
|
| Сетевой LAN-интерфейс |
- 1 x Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit) (LAN1)
- 1 x Intel® GbE LAN (10/100/1000 Мбит) (LAN2)
- Bluetooth 4.0, 3.0+HS, 2.1+EDR
- Support for 11ac wireless standard and up to 867 Mbps data rate
*Одновременная работа не поддерживается.
|
| Разъёмы для плат расширения |
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1~2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
- 2 x PCI Express x16 slots, running at x8 (PCIEX8_1~2)
* The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
(All PCI Express x16 slots conform to PCI Express 3.0 standard.)
- 3 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
|
| Масштабируемость видеоподсистемы |
- Support for 2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ technology
|
| Интерфейсы накопителей |
Chipset:
- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:
- 4 x USB 3.0/2.0 ports on the back panel
|
| Интерфейс USB |
Чипсет:
- 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:
- 4 USB 3.0/2.0 ports on the back panel
|
| Разъемы на системной плате |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 1 x SATA Express connector
- 10 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 5 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.0/2.0 header
- 3 x USB 2.0/1.1 headers
- 1 x Clear CMOS jumper
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
- 2 x audio gain control switches
- 8 x onboard voltage measurement points
- 2 x BIOS switches
|

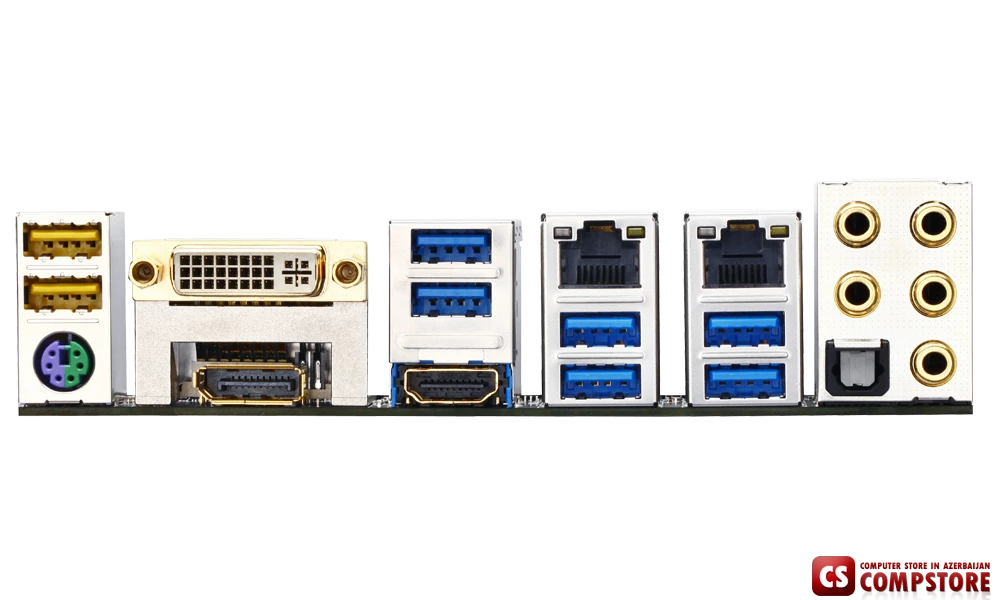

| Разъемы на задней панели |
- 1 x PS/2 keyboard/mouse port
- 1 x optical S/PDIF Out connector
- 1 x DVI-I port
- 1 x DisplayPort
- 1 x HDMI port
- 2 x USB 2.0/1.1 ports
- 6 x USB 3.0/2.0 ports
- 2 x RJ-45 ports
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
|
Микросхема
I/O-контроллера |
- Контроллер iTE® I/O
|
| Сайт производителя |
http://www.gigabyte.com/products/product-page.aspx?pid=4980#sp |
