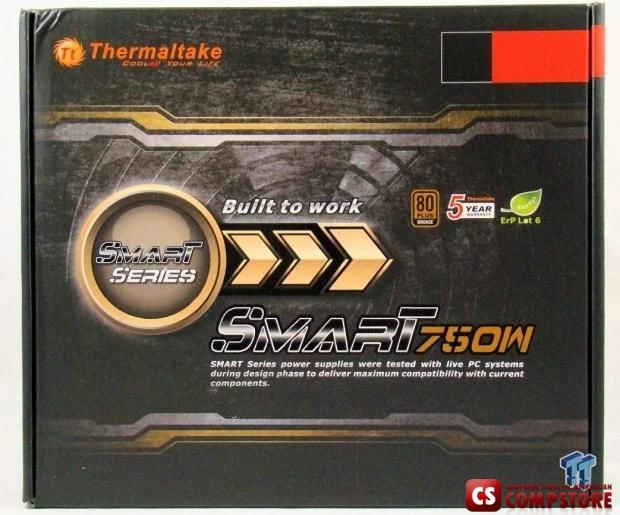

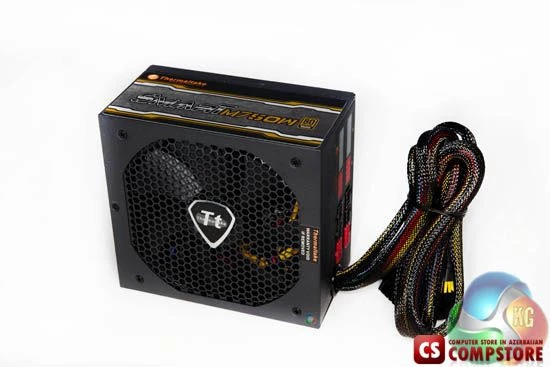

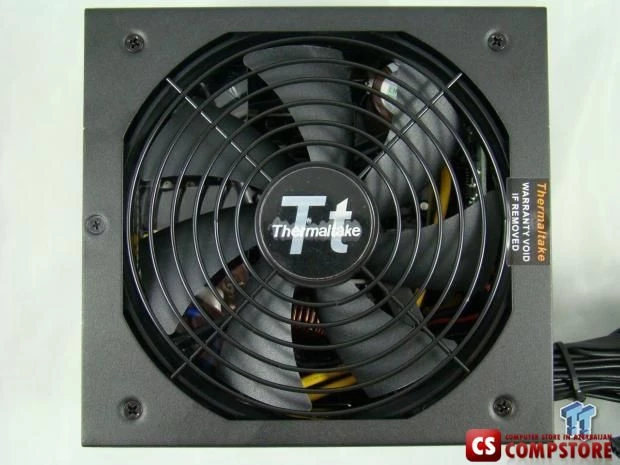

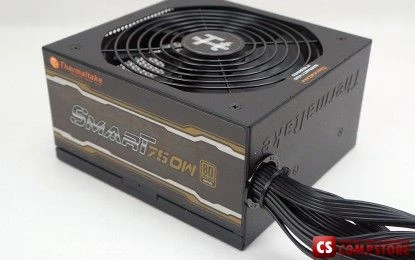

Блок питания Thermaltake SMART 750W в Баку по низкой цене
P/N |
SP-750P |
Type |
Intel ATX 12V 2.3 |
Max. Output Capacity |
750W |
Peak Output Capacity |
900W |
Color |
Black |
Dimension |
86mm x 150mm x 160mm |
PFC (Power Factor Correction) |
Active PFC |
Power Good Signal |
100-500 msec |
Hold Up Time |
16msec (minimum) @ 80% of full load at 115Vac/ 230Vac input. |
Input current |
10A |
Input Frequency Range |
47 Hz - 63 Hz |
Input Voltage |
100 Vac- 240 Vac |
Operating Temperature |
0℃ to +40℃ |
Operating Humidity |
20% to 90%,non-condensing |
Storage Temperature |
-20 ℃ to +70 ℃ |
Storage Humidity |
5% to 95%, non-condensing |
Cooling System |
140mm Fan: 2300 R.P.M. ± 10% |
Efficiency |
82-88% efficiency @ 20-100% load |
MTBF |
100,000 hrs minimum |
Safety Approval |
UL/CUL/TUV/CE/FCC and BSMI |
Protection |
OVP/UVP/OCP/OPP/SCP |
Connector |
24 Pin x 1
CPU 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 8
4 Pin Peripheral x 4
4 Pin Floppy x 1 |
Max Output Current |
+3.3V: 25A
+5V: 25A
+12V: 62A
-12V: 0.8A
+5VSB: 3.0A |
Max Output Power |
+3.3V & +5V: 130W
+12V: 744W
-12V: 9.6W
+5VSB: 15W |
